Name: BWC-13261 Sprag Type One Way Clutch Bearing 15.4mm GCr15
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: BWC-13261 BWC-13251
Price: 567.60 USD
Availability: InStock

Casa Prodotti Un cuscinetto della frizione di modo

BWC-13261 Sprag Type One Way Clutch Bearing 15.4mm GCr15

Dettagli:

Luogo di origine:	Jiangsu, Cina
Marca:	SUMA
Numero di modello:	BWC-13261 BWC-13251

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1

Contatto

Descrizione di prodotto dettagliata

Tipo:	Sprag	Valutazione di precisione:	P0
Tipo di sigilli:	Aprire	Spessore:	15,4 mm
Capacità di coppia:	789 /1580nm	Materiale:	GCR15
Durezza:	HRC58-62	Diametro all'interno:	103.231mm
Diametro esterno:	119.944mm	Larghezza massima:	15,4 mm
Coppia di trascinamento nominale:	789nm (80.5kgf.m)	Durezza superficiale:	HRC60-62
Profondità di durezza:	00,6 mm min.	Durezza del nucleo:	HRC35-45
Rugosità superficiale:	22cla max
Evidenziare:	Sprag type one way clutch bearing , 15.4mm one way clutch bearing , GCr15 one way clutch bearing

BWC-13261 BWC-13251 Sprag Type Freewheel One Way Clutch Bearings

Product Specifications

Attribute	Value
Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works, Energy & Mining
Type	sprag
Precision Rating	P0
Seals Type	OPEN
Thickness	15.4mm
Torque Capacity	789 /1580Nm
Material	GCr15
Hardness	HRC58-62
Delivery	1-2 Days

Product Overview

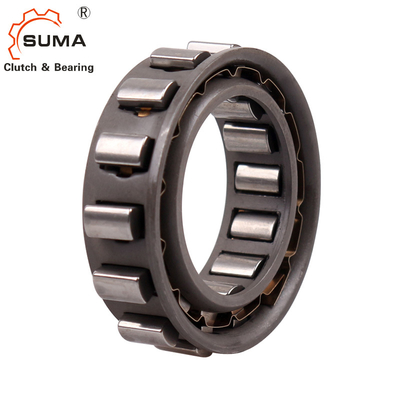

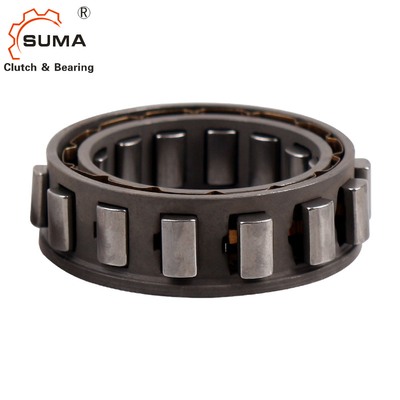

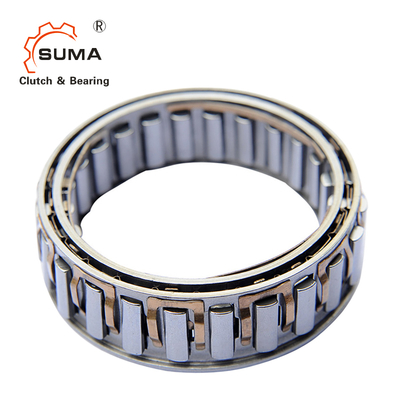

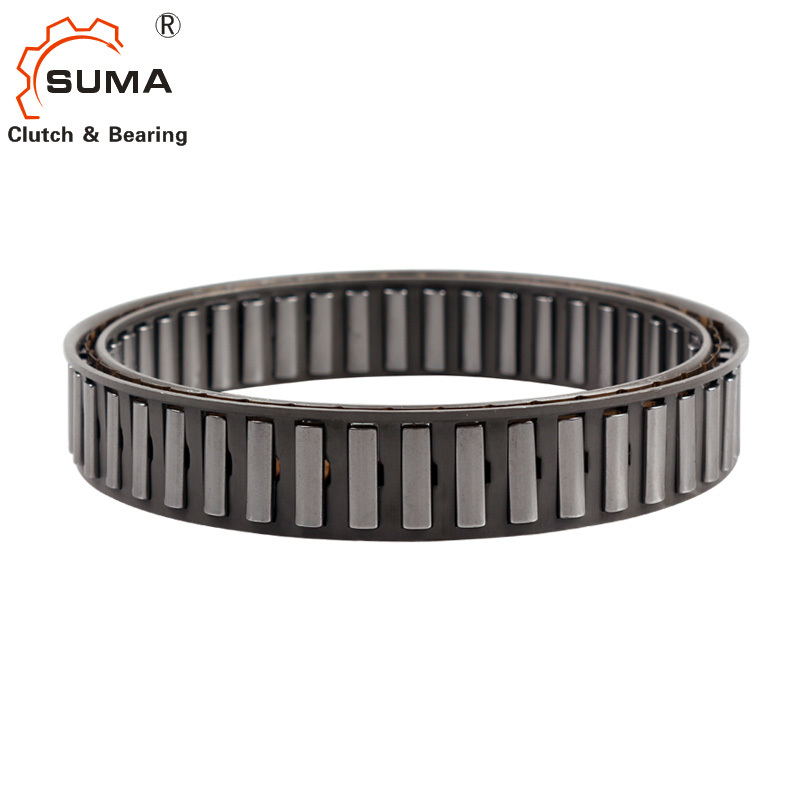

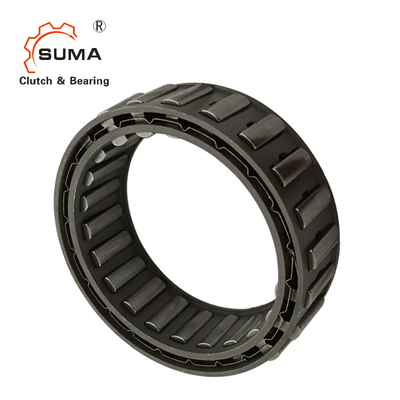

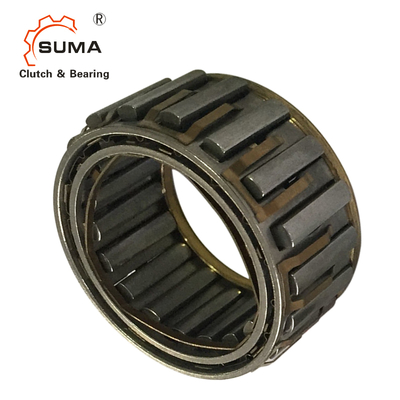

The BWC-13261/BWC-13251 is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. The X type version-N accepts all types of lubricants currently used in power transmission equipment.

The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure proper freewheel function. Alternatively, races can be made in case hardened steel shafts or housings with the following specifications:

Surface hardness: HRC 60 to 62 (minimum depth of 0.6mm)
Core hardness: HRC35 to 45
Surface roughness not to exceed 22CLA
Maximum taper between races: 0.007mm for 25mm width

Technical Parameters

Type	Inside Shaft Diameter	Outside Shaft Diameter	Maximum Width	Rated Drag Torque (N.M / kgf.m)
x-135006	54.572 +0.008-0.005	71.211 ±0.013	20.5	799 (81.5)
BW-13231	54.765	71.427	13.5	402 (41.0)
BW-13214	15.9			363 (37.0)
BW-13167	15.9			569 (58.0)
BW-13209	57.760	74.427	13.5	554 (56.5)
BWC-13239B	15.9			711 (72.5)
BW-13238	21.0			1050 (107)
X-133401	59.538	76.200	25.4	1350 (138)
BW-13243	72.217	88.882	13.5	637 (65.0)
BWC-13168	21.0			1510 (154)
BWC-13229	21.6			1325 (135)
BW-13255	26.7			1920 (196)
X-133614C	83.596 ±0.013	102.555	25.4	3040 (310)
X-133402	85.776	104.775	25.4	3090 (315)
BWC-13251	103.231	119.944	15.4	789 (80.5)
BWC-13261	15.4			1580 (161)
X-133639	103.231	122.230	25.4	4410 (450)
X-133403	123.881	142.880	25.4	5740 (585)

Manufacturer Information

Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in producing various cam clutches, one way bearings, one way clutches, backstop clutches, overrunning clutches and needle roller bearings with high technology.
