FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors

FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors

  • FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
  • FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
  • FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
  • FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
  • FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
  • FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
Dettagli:
Luogo di origine: Jiangsu, Cina
Marca: SUMA or OEM
Termini di pagamento e spedizione:
Quantità di ordine minimo: 2
Prezzo: US$1,000-1,100
Contatto
Descrizione di prodotto dettagliata
Velocità di gara interiore: 1350 min-1 Velocità di gara esterna: 500 min-1
Coppia: 24408 nm Peso: 71 kg
Tipo di lubrificazione: Grasso TIPO SPRAG: Spragate alte
Supporto cuscinetto: Due cuscinetti a sfera Tipo di sigillo: tenuta a labirinto
Intervallo di grandezza di foro: 600> 50 mm, 700> 75 mm Buchi di montaggio: 6 buchi a 60 ° + 2 extra
Coppia massima: 2 × t kn Tipo di design: Formsprag USA
Opzioni di lubrificazione: Olio o grasso Disponibilità a foro: metrica o imperiale
Design ad alta velocità: Modello HPI
Evidenziare:

HPI 900 sprag type clutch

,

conveyor hold back clutch

,

one way clutch bearing

FSO900 / HPI 900 Hold Back Clutch with Sprag Type Freewheels for Conveyors and Reducers
Product Specifications
Attribute Value
Warranty 1 YEAR
Applicable Industries Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory
Customized support OEM
Inner race overrunning speed (min-1) 1350
Outer race overrunning speed (min-1) 500
Torque (N.m) 24408
Weight (kg) 71
Lubricated grease
OEM Accept
Delivery 10-15 days
Product name FSO900 / HPI 900
Product Overview

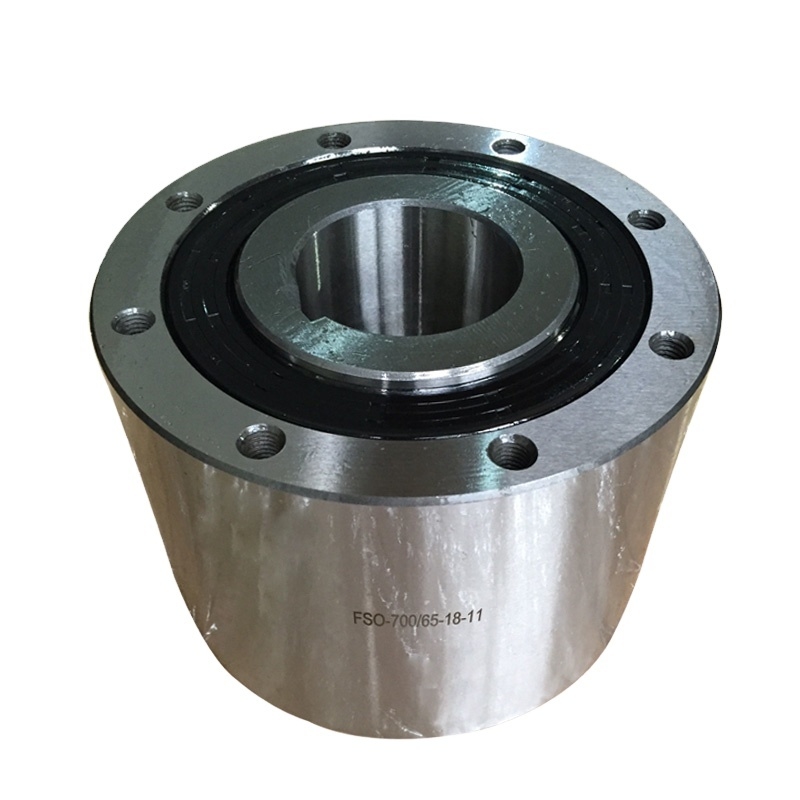

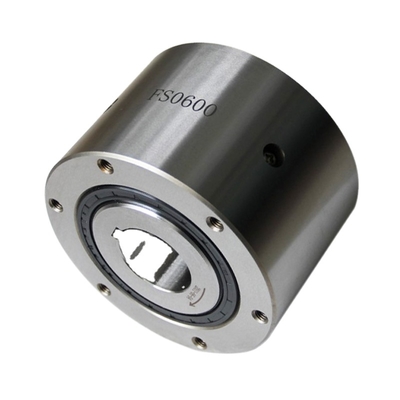

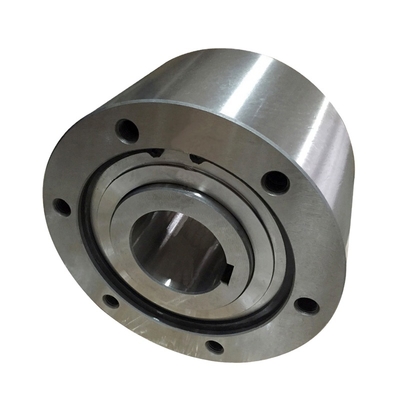

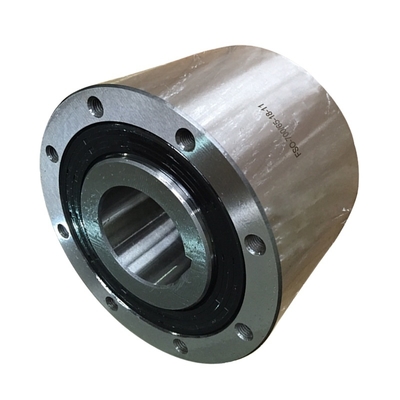

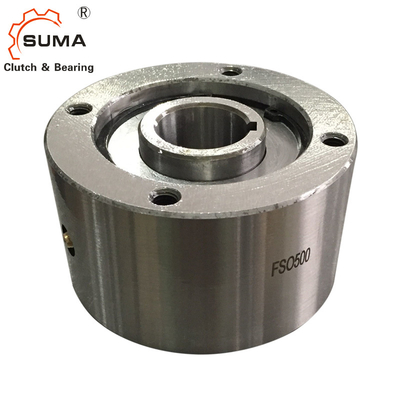

The FSO900 is a one-way hold back clutch with sprag type freewheels, designed for conveyor systems and reducers. This self-contained, sealed unit features bearing support with two ball bearings for reliable operation.
FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 0 FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 1
Key Features
  • Available in FSO, FS, and HPI 750 to 1027 series
  • Sprag type freewheels with self-contained, sealed design
  • Bearing supported with two ball bearings
  • Delivered oil or grease lubricated according to type
  • Formsprag USA design with tall sprags and multi-radius active surfaces
  • Compensates for eccentricity due to bearing wear
  • FS and HPI types are oil lubricated with standard shaft lip seals
  • FSO type is grease lubricated with special grease seals
  • HPI type designed for high speed indexing applications
  • Available in standard metric bore diameters with custom sizes available
FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 2 FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 3
Technical Notes
1) T max = 2 × T KN
2) Inner race/outer race
3) Inner race/outer race labyrinth seal
4) Inch bore available on request
5) Only for oversize bore
Size 600 > 50 mm
Size 700 > 75 mm
*) 6 holes equally spaced at 60° plus 2 extra-holes at 180°
Mounting Example
FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 4 FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 5 FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 6 FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 7
Packaging
FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 8 FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 9
