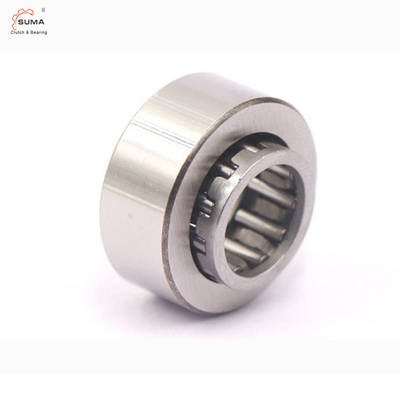

RSTO10 RSTO12 Yoke Type Track Rollers senza corsa interna
Caratteristiche di Yoke Type Track Rollers
Rulli di sostegno, senza anelli della flangia, senza un anello interno.
Il tipo del rullo RSTO di sostegno non ha un anello interno ed il rullo di sostegno può funzionare direttamente sull'asse indurita come la canalizzazione.
Il tipo di STO ha un anello interno e gli anelli interni ed esterni e le loro assemblee di corrispondenza della gabbia del rullo dell'ago possono essere installati esclusivamente.
Dal tipo rulli di STO e di RSTO di sostegno non abbia le costole ed anelli di conservazione del fronte dell'estremità, devono essere guidati lungo un asse durante l'installazione e le loro superfici guidanti devono essere almeno precisione hanno lavorato.
Dimensioni e capacità di Yoke Type Track Rollers
Dimensioni | Massachussets | Designazione | Valutazione del carico di base | Affaticamento | Max Radial Force | Limitazione Velocità |
|||||||
D | C | D1 | FW | E | r | C | C0 | Unità di elaborazione | Franco | F0r | |||
millimetro | chilogrammo | kN | kN | kN | r/min | ||||||||
16 | 7,8 | – | 7 | 10 | 0,3 | 0.008 | RSTO 5 TN | 2,51 | 2,5 | 0,27 | 3,55 | 5 | 8000 |
19 | 9,8 | – | 10 | 13 | 0,3 | 0.012 | RSTO 6 TN | 3,74 | 4,5 | 0,5 | 4,25 | 6,1 | 7000 |
11,8 | 16 | 10 | – | 0,3 | 0.018 | RNA 22/6.2RS | 4,02 | 3,65 | 0.425 | 2,55 | 3,6 | 7000 | |
24 | 9,8 | – | 12 | 15 | 0,3 | 0.021 | RSTO 8 TN | 4,13 | 5,4 | 0,6 | 7,5 | 10,8 | 7000 |
11,8 | 18 | 12 | – | 0,3 | 0.029 | RNA 22/8.2RS | 4,68 | 4,55 | 0,54 | 5,3 | 7,5 | 6700 | |
30 | 11,8 | – | 14 | 20 | 0,3 | 0.042 | RSTO 10 | 8,25 | 8,8 | 1,04 | 8,5 | 12,2 | 6000 |
13,8 | 20 | 14 | – | 0,6 | 0.052 | RNA2200.2RS | 6,6 | 7,5 | 0,88 | 12 | 17,3 | 6300 | |
32 | 11,8 | – | 16 | 22 | 0,3 | 0.049 | RSTO 12 | 8,8 | 9,8 | 1,18 | 8,3 | 12 | 5600 |
13,8 | 22 | 16 | – | 0,6 | 0.057 | RNA2201.2RS | 7,04 | 8,5 | 1 | 11,6 | 16,6 | 6000 | |
35 | 11,8 | – | 20 | 26 | 0,3 | 0,05 | RSTO 15 | 9,13 | 10,6 | 1,27 | 7,1 | 10 | 5000 |
13,8 | 26 | 20 | – | 0,6 | 0,06 | RNA2202.2RS | 7,48 | 9,3 | 1,12 | 9,5 | 13,7 | 5000 | |
40 | 15,8 | 28 | 22 | – | 1 | 0.094 | RNA2203.2RS | 9,52 | 13,2 | 1,6 | 15,3 | 22 | 4500 |
15,8 | – | 22 | 29 | 0,3 | 0.088 | RSTO 17 | 14,2 | 17,6 | 2,08 | 12 | 17,3 | 4500 | |
47 | 15,8 | – | 25 | 32 | 0,3 | 0,13 | RSTO 20 | 16,1 | 21,2 | 2,5 | 18,6 | 26,5 | 4000 |
17,8 | 33 | 25 | – | 1 | 0,15 | RNA2204.2RS | 16,1 | 18 | 2,16 | 17,6 | 25,5 | 4000 | |
52 | 15,8 | – | 30 | 37 | 0,3 | 0,15 | RSTO 25 | 16,5 | 22,8 | 2,7 | 18 | 26 | 3400 |
17,8 | 38 | 30 | – | 1 | 0,18 | RNA2205.2RS | 16,8 | 20 | 2,4 | 17,3 | 24,5 | 3400 | |
62 | 19,8 | 43 | 35 | – | 1 | 0,28 | RNA2206.2RS | 17,9 | 25,5 | 3,05 | 28,5 | 40,5 | 2800 |
19,8 | – | 38 | 46 | 0,6 | 0,26 | RSTO 30 | 22,9 | 34,5 | 4,25 | 23,6 | 33,5 | 2600 | |
72 | 19,8 | – | 42 | 50 | 0,6 | 0,38 | RSTO 35 | 24,6 | 39 | 4,8 | 36 | 51 | 2200 |
22,7 | 50 | 42 | – | 1,1 | 0,43 | RNA2207.2RS | 22,4 | 35,5 | 4,3 | 38 | 54 | 2200 | |
80 | 19,8 | – | 50 | 58 | 1 | 0,42 | RSTO 40 | 23,8 | 39 | 4,75 | 34,5 | 49 | 1900 |
22,7 | 57 | 48 | – | 1,1 | 0,53 | RNA2208.2RS | 27,5 | 40,5 | 5 | 35,5 | 51 | 1900 | |
85 | 19,8 | – | 55 | 63 | 1 | 0,45 | RSTO 45 | 25,1 | 43 | 5,3 | 34,5 | 50 | 1700 |
90 | 19,8 | – | 60 | 68 | 1 | 0,48 | RSTO 50 | 26 | 45,5 | 5,7 | 34,5 | 50 | 1600 |
PACCHETTO di Yoke Type Track Rollers
