Tipo seguicamma del perno
>
|
| Luogo di origine | La Cina |
| Marca | SUMA |
| Certificazione | ISO SGS |
| Numero di modello | CF-1-3/4-SB |

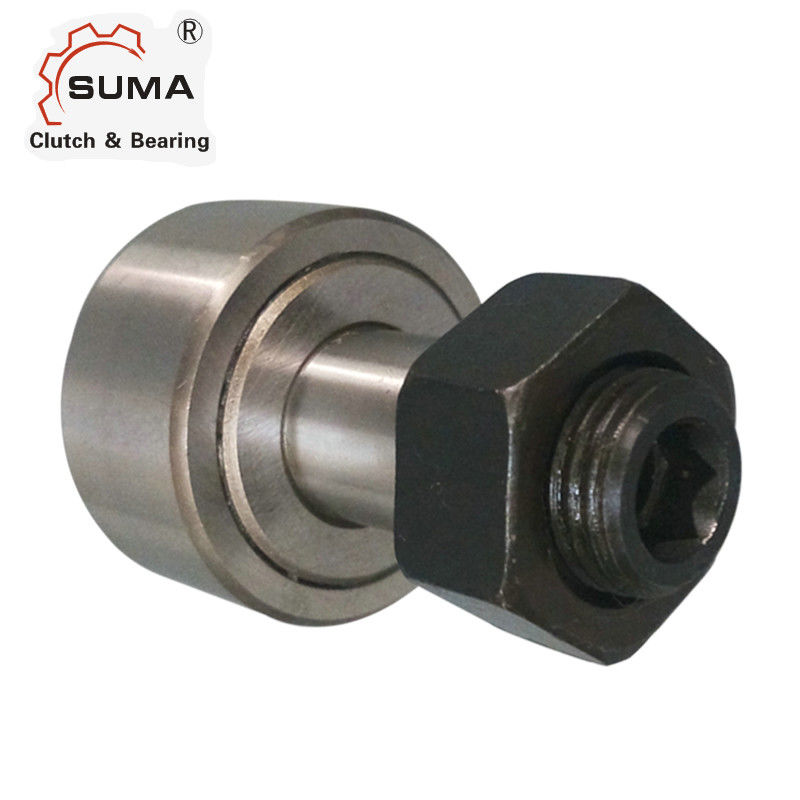

Tipo camma cilindrica del perno di CF-1-3/4-SB del seguace del rullo
Caratteristiche
anello esterno lavorato della spesso-parete
rulli dell'ago o insiemi cilindrici del rullo
rullo dell'ago di orientamento della gabbia o del complemento completo
anello o bullone e guarnizione interni
Dati tecnici
| Dissigilli no. |
Sigillato no. |
Diametro del rullo (RD) |
Larghezza del rullo (W) |
Diametro del perno. (Deviazione standard) |
Perno Lgth (SL) |
Min Thrd Lgth (TL) |
Fili fini |
Dimensione di Lub Fiting (F) |
Toque libbre |
Capacità statica libbre |
Cpacity dinamico libbre |
| CF-1/2-N | CF-1/2-N-S | 0,5 | 0,344 | 0,19 | 1/2 | 1/4 | 10-32 | 1/8 | 15 | 720 | 620 |
| CF-1/2 | CF-1/2-S | 0,5 | 0,375 | 0,19 | 5/8 | 1/4 | 10-32 | 1/8 | 15 | 790 | 680 |
| CF-9/16 | CF-9/16-S | 0,5625 | 0,375 | 0,19 | 5/8 | 1/4 | 10-32 | 1/8 | 15 | 790 | 680 |
| CF-5/8-N | CF-5/8-N-S | 0,625 | 0,406 | 0,25 | 5/8 | 5/16 | 1/4-28 | 1/8 | 35 | 1065 | 930 |
| CF-5/8 | CF-5/8-S | 0,625 | 0,4375 | 0,25 | 3/4 | 5/16 | 1/4-28 | 1/8 | 35 | 1215 | 955 |
| CF-11/16 | CF-11/16-S | 0,6875 | 0,4375 | 0,25 | 3/4 | 5/16 | 1/4-28 | 1/8 | 95 | 1215 | 955 |
| CF-3/4 | CF-3/4-S | 0,75 | 0,5 | 0,375 | 7/8 | 3/8 | 3/8-24 | 3/16 | 95 | 2065 | 1660 |
| CF-7/8 | CF-7/8-S | 0,875 | 0,5 | 0,375 | 7/8 | 3/8 | 3/8-24 | 3/16 | 250 | 2065 | 1660 |
| CF-1 | CF-1-S | 1 | 0,625 | 0,4375 | 1 | 1/2 | 7/16-20 | 3/16 | 250 | 3060 | 2225 |
| CF-1 1/8 | CF-1 1/8-S | 1,125 | 0,625 | 0,4375 | 1 | 1/2 | 7/16-20 | 3/16 | 350 | 3060 | 2225 |
| CF-1 1/4 | CF-1 1/4-S | 1,25 | 0,75 | 0,5 | 1 1/4 | 5/8 | 1/2-20 | 3/16 | 350 | 4250 | 3930 |
| CF-1 3/8 | CF-1 3/8-S | 1,375 | 0,75 | 0,5 | 1 1/4 | 5/8 | 1/2-20 | 3/16 | 650 | 4250 | 3930 |
| CF-1 1/2 | CF-1 1/2-S | 1,5 | 0,875 | 0,625 | 1 1/2 | 3/4 | 5/8-18 | 3/16 | 650 | 5640 | 4840 |
| CF-1 5/8 | CF-1 5/8-S | 1,625 | 0,875 | 0,625 | 1 1/2 | 3/4 | 5/8-18 | 3/16 | 1250 | 5640 | 4840 |
| CF-1 3/4 | CF-1 3/4-S | 1,75 | 1 | 0,75 | 1 3/4 | 7/8 | 3/4-16 | 3/16 | 1250 | 7920 | 6385 |
| CF-1 7/8 | CF-1 7/8-S | 1,875 | 1 | 0,75 | 1 3/4 | 7/8 | 3/4-16 | 3/16 | 1500 | 7920 | 6385 |
| CF-2 | CF-2-S | 2 | 1,25 | 0,875 | 2 | 1 | 7/8-14 | 3/16 | 1500 | 10570 | 8090 |
| CF-2 1/4 | CF-2 1/4-S | 2,25 | 1,25 | 0,875 | 2 | 1 | 7/8-14 | 3/16 | 2250 | 10570 | 8090 |
| CF-2 1/2 | CF-2 1/2-S | 2,5 | 1,5 | 1 | 2 1/4 | 1 1/8 | 1-14 | 3/16 | 2250 | 16450 | 11720 |
| CF-2 3/4 | CF-2 3/4-S | 2,75 | 1,5 | 1 | 2 1/4 | 1 1/8 | 1-14 | 3/16 | 3450 | 16450 | 11720 |
| CF-3 | CF-3-S | 3 | 1,75 | 1,25 | 2 1/2 | 1 1/4 | 1 1/4-12 | 1/4 | 3450 | 24910 | 15720 |
| CF-3 1/4 | CF-3 1/4-S | 3,25 | 1,75 | 1,25 | 2 1/2 | 1 1/4 | 1 1/4-12 | 1/4 | 4200 | 24910 | 15720 |
| CF-3 1/2 | CF-3 1/2-S | 3,5 | 2 | 1,375 | 2 3/4 | 1 3/8 | 1 3/8-12 | 1/4 | 5000 | 31625 | 22800 |
| CF-4 | CF-4-S | 4 | 2,25 | 1,5 | 3 1/2 | 1 1/2 | 1 1/2-12 | 1/4 | 5000 | 44770 | 29985 |
| CF-5-S | 5 | 2,75 | 2 | 5 1/16 | 2 9/16 | 2-12 | 1/4N.P.T | 5000 | 67950 | 46575 | |
| CF-6-S | 6 | 3,25 | 2,5 | 6 | 3 | 2 1/2-12 | 1/4N.P.T | 5000 | 80450 | 60000 | |
| CF-7-S | 7 | 3,75 | 3 | 7 11/16 | 4 1/8 | 3-12 | 1/4N.P.T | 5000 | 106930 | 75380 | |
| CF-8-S | 8 | 4,25 | 3,25 | 8 1/2 | 4 1/4 | 3 1/4-4 | 1/4N.P.T | 5000 | 144100 | 92200 | |
| CF-9-S | 9 | 4,75 | 3,75 | 9 1/2 | 4 3/4 | 3 1/2-4 | 1/4N.P.T | 5000 | 183430 | 113260 | |
| CF-10-S | 10 | 5,25 | 4,25 | 10 | 4 3/4 | 3 1/2-4 | 1/4N.P.T | 5000 | 215565 | 131545 |
