Luogo di origine: | La Cina |
---|---|
Marca: | SUMA |
Certificazione: | ISO SGS |
Numero di modello: | CFH-1-S |
Quantità di ordine minimo: | 10pcs |
Prezzo: | USD2.5-USD3.2 PER PIECE |
Imballaggi particolari: | Contenitore di cartone/scatola di legno |
Termini di pagamento: | L/C, D/A, D/P, T/T, Western Union, Paypal |
Capacità di alimentazione: | 100000 pc al mese |
Tempi di consegna: | 3-5 giorni | Nome di prodotto: | Cuscinetti CFH-1-S del seguicamma |
---|---|---|---|
Materiale: | Sopportare GCr15 d'acciaio | Superficie esterna della corsa: | Cilindrico |
Pacchetto: | Ciascuno in sacchetto di plastica + contenitore di cartone | Garanzia: | 6 mesi |
Porto: | Shanghai/Ningbo | OEM: | accetti |
Evidenziare: | Tipo seguicamma del perno di CFH-1-B,Tipo seguicamma del perno GCr15,Seguicamma del perno di CFH-1-B |

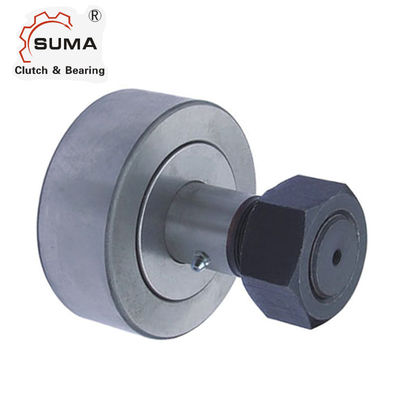

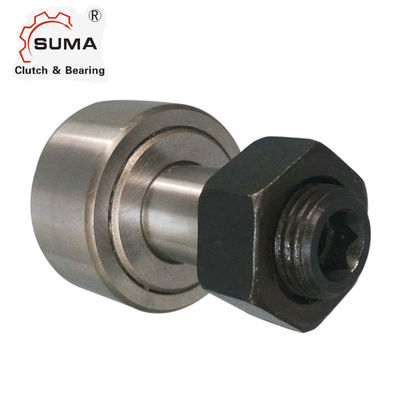

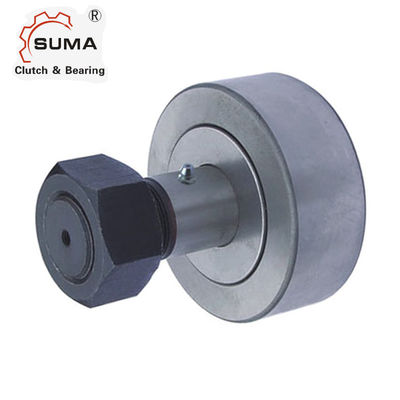

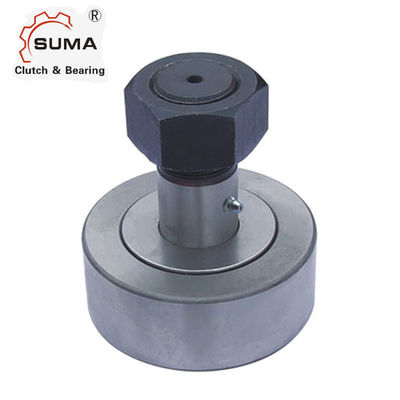

Tipo resistente seguicamma del perno di serie CFH-1-S di CFH-S & di CFH
Caratteristiche
Le funzioni tipiche di un seguicamma sono di fornire il supporto antifrizione di movimento lineare o di seguire la superficie di una camma.
SUMA Stud Cam Follower è stata destinata per resistere ai requisiti intermittenti di scossa, di caricamento e di precisione connessi con queste applicazioni.
Applicazione:
Alimento e bevanda | Attrezzatura per imballaggio | Maneggio del materiale dell'unità |
Fabbriche di automobili | Trivellazione petrolifera | Acciaierie |
Texitiles/stampare | Attrezzatura di automazione | Macchine utensili |
Dati tecnici
Dimensioni e capacità
INSEALED BRG. NO |
INSEALED BRG. NO |
RULLO Diametro (RD) |
RULLO LARGHEZZA (w) |
PERNO Diametro (Deviazione standard) |
PERNO LUNGHEZZA (SL) |
Minuto. FILO LUNGHEZZA (TL) |
INDENNITÀ FILO |
FORO DI OLIO | ALLOGGIO Diametro +.0002 -.0003 |
RRCOM. CL AMPING COPPIA DI TORSIONE Libbre. IN |
Max ELETTRICITÀ STATICA CAPACITÀ Libbre. |
BASIC Dina. VALUTAZIONE Libbre. |
|
FORO CENTRO (HC) |
FORO DIAMETRO (HD) |
||||||||||||
CFH-1/2 | CFH-1/2-S | 0,500 | 0,375 | 0,250 | 5/8 | 1/4 | 1/4-28 | .2503 | 35 | 1580 | 680 | ||
CFH-9/16 | CFH-9/16-S | 0,5625 | 0,375 | 0,250 | 5/8 | 1/4 | 1/4-28 | .2503 | 35 | 1580 | 680 | ||
CFH-5/8 | CFH-5/8-S | 0,625 | 0,4375 | 0,3125 | 3/4 | 5/16 | 5/16-24 | .3128 | 90 | 2480 | 955 | ||
CFH-11/16 | CFH-11/16-S | 0,6875 | 0,4375 | 0,3125 | 3/4 | 5/16 | 5/16-24 | .3128 | 90 | 2480 | 955 | ||
CFH-3/4 | CFH-3/4-S | 0,750 | 0,500 | 0,4375 | 7/8 | 3/8 | 7/16-20 | 1/4 | 3/32 | .4378 | 250 | 4130 | 1660 |
CFH-7/8 | CFH-7/8-S | 0,875 | 0,500 | 0,4375 | 7/8 | 3/8 | 7/16-20 | 1/4 | 3/32 | .4378 | 250 | 4130 | 1660 |
CFH-1 | CFH-1-S | 1,000 | 0,625 | 0,625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | .6253 | 650 | 6120 | 2225 |
CFH-1 1/8 | CFH-1 1/8-S | 1,1250 | 0,625 | 0,625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | .6253 | 650 | 6120 | 2225 |
CFH-1 1/4 | CFH-1 1/4-S | 1,250 | 0,750 | 0,750 | 1 1/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | .7503 | 1250 | 8500 | 3930 |
CFH-1 3/8 | CFH-1 3/8-S | 1,375 | 0,750 | 0,750 | 1 1/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | .7503 | 1250 | 8500 | 3930 |
CFH-1 1/2 | CFH-1 1/2-S | 1,500 | 0,875 | 0,875 | 1 1/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | .8753 | 1500 | 11280 | 4840 |
CFH-1 5/8 | CFH-1 5/8-S | 1,625 | 0,875 | 0,875 | 1 1/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | .8753 | 1500 | 11280 | 4840 |
CFH-1 3/4 | CFH-1 3/4-S | 1,750 | 1,000 | 1,000 | 1 3/4 | 7/8 | 1-14 | 7/16 | 3/32 | 1,0003 | 2250 | 15840 | 6385 |
CFH-1 7/8 | CFH-1 7/8-S | 1,875 | 1,000 | 1,000 | 1 3/4 | 7/8 | 1-14 | 7/16 | 3/32 | 1,0003 | 2250 | 15840 | 6385 |
CFH-2 | CFH-2-S | 2,000 | 1,125 | 1,125 | 2 | 1 | 1 1/8-12 | 1/2 | 1/8 | 1,1253 | 2800 | 21140 | 8090 |
CFH-2 1/4 | CFH-2 1/4-S | 2,250 | 1,125 | 1,125 | 2 | 1 | 1 1/8-12 | 1/2 | 1/8 | 1,1253 | 2800 | 21140 | 8090 |
CFH-2 1/2 | CFH-2 1/2-S | 2,500 | 1,250 | 1,250 | 2 1/4 | 1 1/8 | 1 1/4-12 | 9/16 | 1/8 | 1,2503 | 3450 | 32900 | 11720 |
CFH-2 3/4 | CFH-2 3/4-S | 2,750 | 1,250 | 1,250 | 2 1/4 | 1 1/8 | 1 1/4-12 | 9/16 | 1/8 | 1,2503 | 3450 | 32900 | 11720 |
CFH-3 | CFH-3-S | 3,000 | 1,500 | 1,500 | 2 1/2 | 1 1/4 | 1 1/2-12 | 5/8 | 1/8 | 1,5003 | 5000 | 49820 | 15720 |
CFH-3 1/4 | CFH-3 1/4-S | 3,250 | 1,500 | 1,500 | 2 1/2 | 1 1/4 | 1 1/2-12 | 5/8 | 1/8 | 1,5003 | 5000 | 49820 | 15720 |
CFH-3 1/2 | CFH-3 1/2-S | 3,500 | 1,750 | 1,750 | 2 3/4 | 1 3/8 | 1 3/4-12 | 11/16 | 1/8 | 1,7503 | 5000 | 63250 | 22800 |
CFH-4 | CFH-4-S | 4,000 | 2,000 | 2,000 | 3 1/2 | 1 1/2 | 2-12 | 3/4 | 1/8 | 2,0003 | 5000 | 89540 | 29985 |
CFH-5-S | 5,000 | 2,750 | 2,500 | 5 1/16 | 2 9/16 | 2 1/2-12 | 7/8 | 3/16 | 2,5003 | 5000 | 135900 | 46575 | |
CFH-6-S | 6,000 | 3,250 | 3,000 | 6 | 3 | 3-12 | 1 | 3/16 | 3,0003 | 5000 | 160900 | 60000 | |
CFH-7-S | 7,000 | 3,750 | 3,500 | 7 11/16 | 4 1/8 | 3 1/2-4 | 1 1/4 | 3/16 | 3,5003 | 5000 | 213860 | 75380 |
